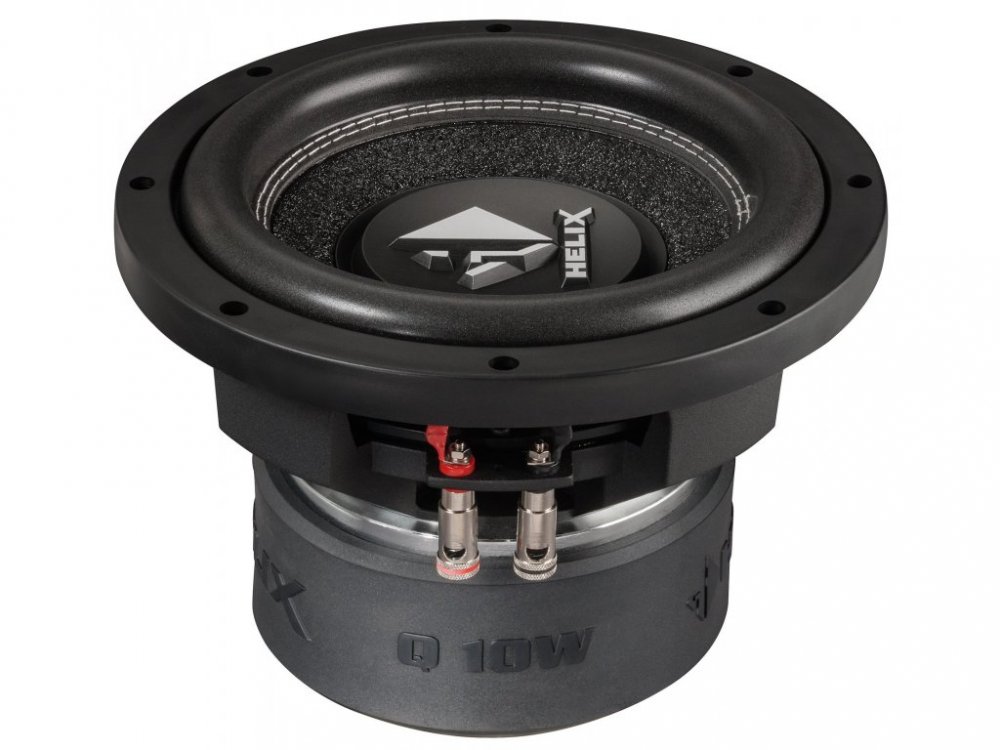

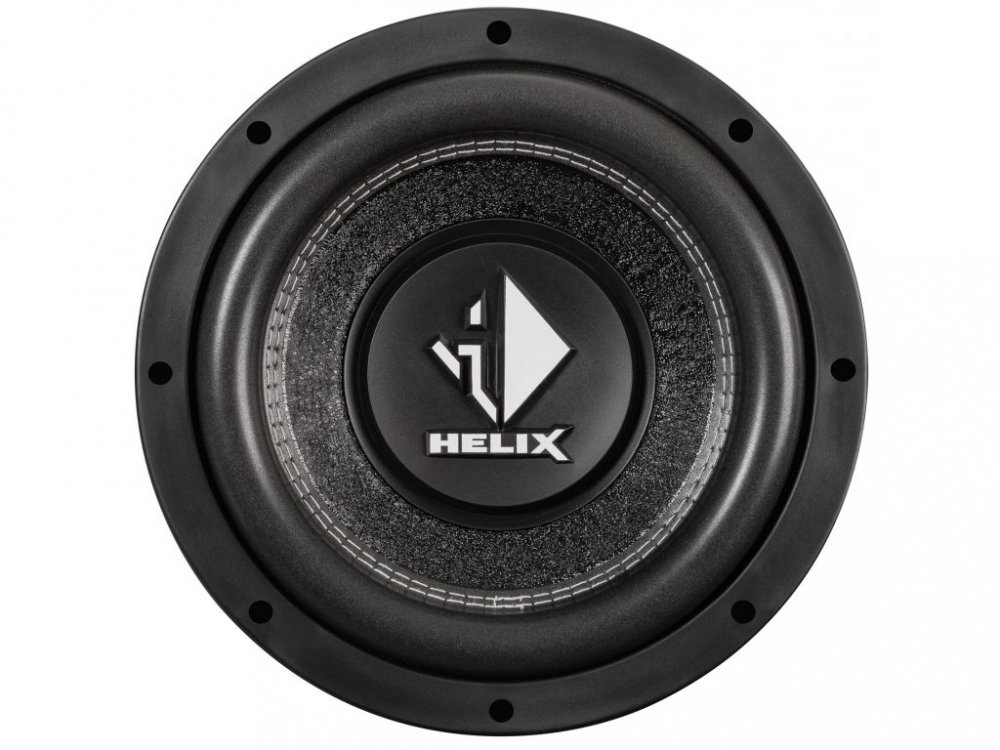

Helix Q 10W
Samostatný subwoofer Helix, 25 cm, 750 W RMS
Celý popis
Výrobce:
Q10W
Kód:
Dostupnost:
Popis
Parametry
Komentáře (0)
Technické parametry
| Power RMS / max. |
P |
750 / 1,500 Watts |
| Impedance |
Z |
2 x 2 Ω |
| DC resistance |
Re |
2 x 1.95 Ω |
| Resonance frequency |
Fs |
35 Hz |
| Mechanical Q factor |
Qms |
4.17 |
| Electrical Q factor |
Qes |
0.42 |
| Total Q factor |
Qts |
0.38 |
| Compliance |
Cms |
99 μm/N |
| Equivalent air volume |
Vas |
13.8 L |
| Force factor |
B*I |
21.5 Tm |
| Efficiency 1 W / 1 m |
SPL |
85.0 dB |
| Cone area |
Sd |
333 cm² |
| Moving mass |
Mms |
220 g |
| Cone material |
|
Non-pressed paper cone |
| Mechanical resistance |
Rms |
11.9 kg/s |
| Voice coil diameter |
ø |
63.5 mm |
| Voice coil winding height |
|
40 mm |
| Max. linear excursion |
Xmax |
+/- 14.0 mm |
| Outer diameter |
ø |
274 mm / 10.79" |
| Installation diameter |
ø |
234 mm / 9.21" |
| Installation depth |
|
163 mm / 6.42" |
| |
| Recommended enclosure volumes |
| Sealed box |
| Net volume |
|
15 L |
| Lower limiting frequency (-3dB) |
|
52 Hz |
| |
| Vented box |
| Net volume |
|
30 L |
| Port diameter |
ø |
80 mm / 3.15" |
| Port area |
|
50 cm² |
| Port length |
|
25 cm / 9.84" |
| Port tuning frequency |
Fb |
38 Hz |
| Lower limiting frequency (-3dB) |
|
39 Hz |
