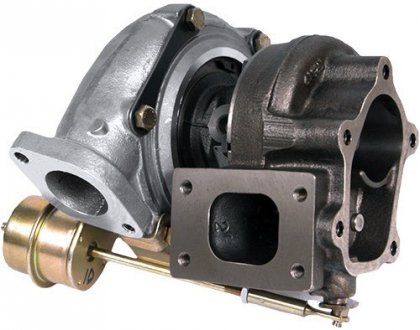

Turbo firmy Garrett GT2860R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836026-5005S | 835998-0006 | 47mm | 60mm | 62 | 0.60 | 54mm | 47mm | 76 | 0.64 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | ||
| Additional Turbine Housing Options (Additional housings are not directly interchangeable and will require modifications to the exhaust to be fitted) |
827690-0005 | 0.64 | T25 | 5-Bolt | Wastegated | N | 76 | ||
| 827690-0004 | 0.86 | T25 | 5-Bolt | Wastegated | N | 76 | |||
| 827690-0001 | 0.57 | V-Band | V-Band | Free Float | N | 76 | |||
| 827690-0002 | 0.72 | V-Band | V-Band | Free Float | N | 76 | |||

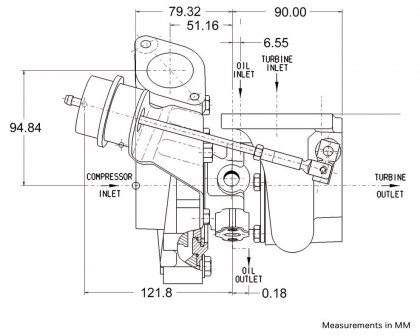

Rozměry:
Grafy:
