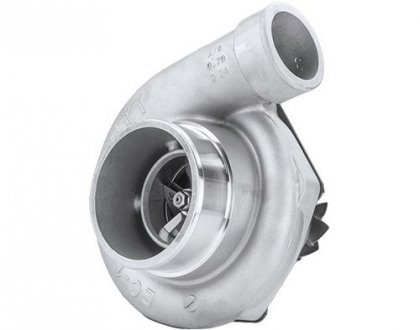

Turbo firmy Garrett GT3582R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 836033-5002S | 836005-0003 | 61mm | 82mm | 56 | 0.70 | 68mm | 62mm | 84 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 740902-0012 | 0.63 | T3 | V-Band | Free Float | N | 84 | |
| 740902-0011 | 0.82 | T3 | V-Band | Free Float | N | 84 | ||
| 740902-0010 | 1.06 | T3 | V-Band | Free Float | N | 84 | ||
| 740902-0018 | 0.63 | T4 | V-Band | Free Float | N | 84 | ||
| 740902-0017 | 0.82 | T4 | V-Band | Free Float | N | 84 | ||
| 740902-0016 | 1.06 | T4 | V-Band | Free Float | N | 84 | ||
| 740902-0033 | 0.61 | V-Band | V-Band | Free Float | N | 84 | ||
| 740902-0032 | 0.83 | V-Band | V-Band | Free Float | N | 84 | ||
| 740902-0031 | 1.01 | V-Band | V-Band | Free Float | N | 84 | ||
| Wastegated Turbine Assembly does not include bolts, clamps, or actuator | Turbine Asbly PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| 771300-0003 | 0.63 | T2 | 5 Bolt | Wastegated | N | 84 | ||
| 771300-0002 | 0.82 | T3 | 5 Bolt | Wastegated | N | 84 | ||

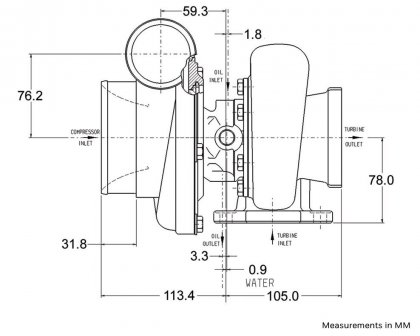

Rozměry:
Grafy:
