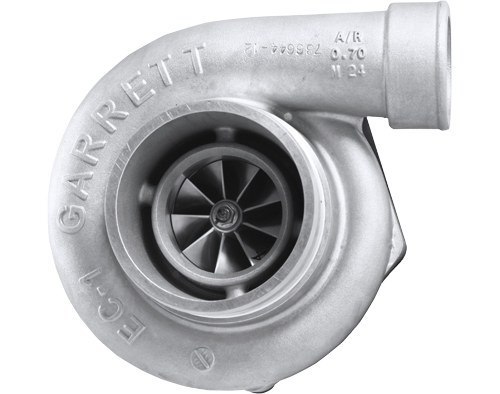

Turbo firmy Garrett GTW3684.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 841297-5002S | 715582-0007 | 62mm | 84mm | 54 | 0.70 | 71mm | 62mm | 76 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 844669-0005 | 0.70 | T4 | V-Band | Free Float | Y | 76 | |
| 844669-0006 | 1.00 | T4 | V-Band | Free Float | Y | 76 | ||
| 844669-0007 | 1.15 | T4 | V-Band | Free Float | Y | 76 | ||
*841297 Journal Bearing Option
*841691 Water Cooled CHRA

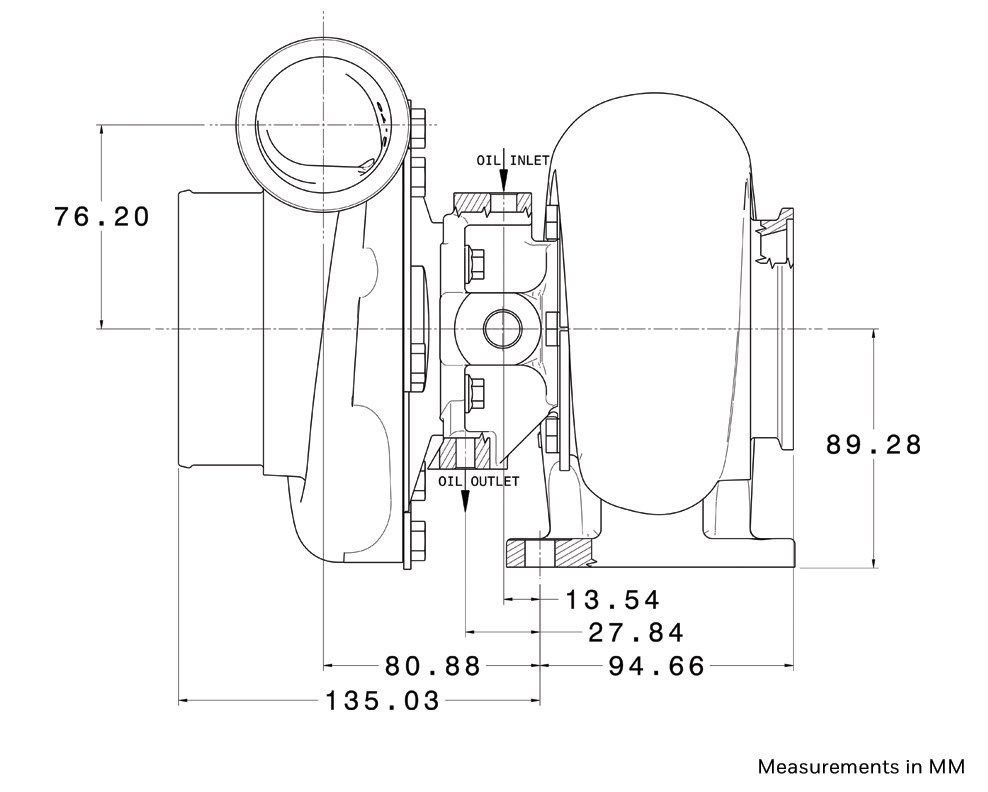

Rozměry:
Grafy:
