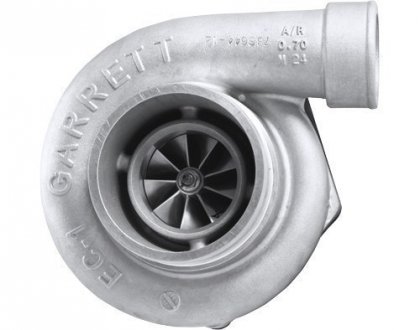

Turbo firmy Garrett GTW3884R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 841691-5003S | 757197-0012 | 62mm | 84mm | 54 | 0.70 | 74mm | 65mm | 76 |
| 841691-5004S | 757197-0013 | 64mm | 84mm | 58 | 0.70 | 74mm | 65mm | 76 |
| 841691-5005S | 757197-0014 | 67mm | 84mm | 64 | 0.70 | 74mm | 65mm | 76 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 844669-0009 | 0.96 | T4 | V-Band | Free Float | N | 76 | |
| 844669-0010 | 1.14 | T4 | V-Band | Free Float | N | 76 | ||
*841297 Journal Bearing Option
*841691 Water Cooled CHRA

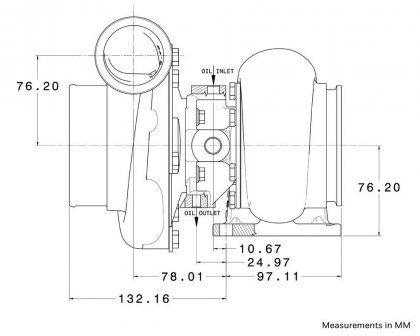

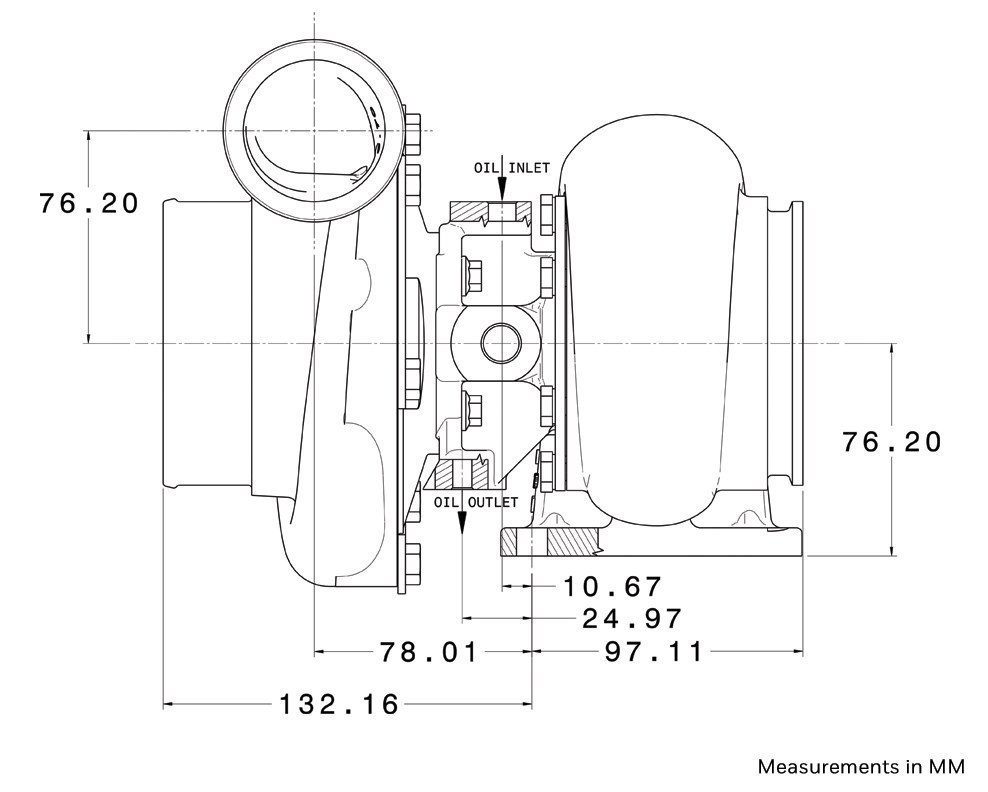

Rozměry:
Grafy:
