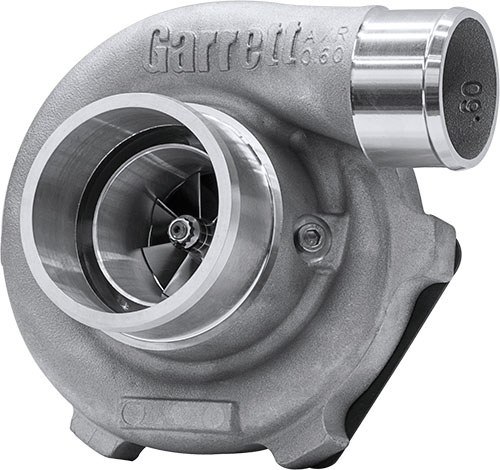

Turbo firmy Garrett GTX2860R GEN II.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX2860R | 46mm | 60mm | 58 | 0.60 | 54mm | 47mm | 76 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | 856800-5003S | 849894-5001S | 827690-0003 | 0.64 | T25 | 5 bolt | Wastegated | N |
| 856800-5004S | 849894-5001S | 827690-0004 | 0.86 | T25 | 5 bolt | Wastegated | N | |
| 856800-5001S | 849894-5001S | 827690-0001 | 0.57 | V-Band | V-Band | Free Float | N | |
| 856800-5002S | 849894-5001S | 827690-0002 | 0.72 | V-Band | V-Band | Free Float | N | |

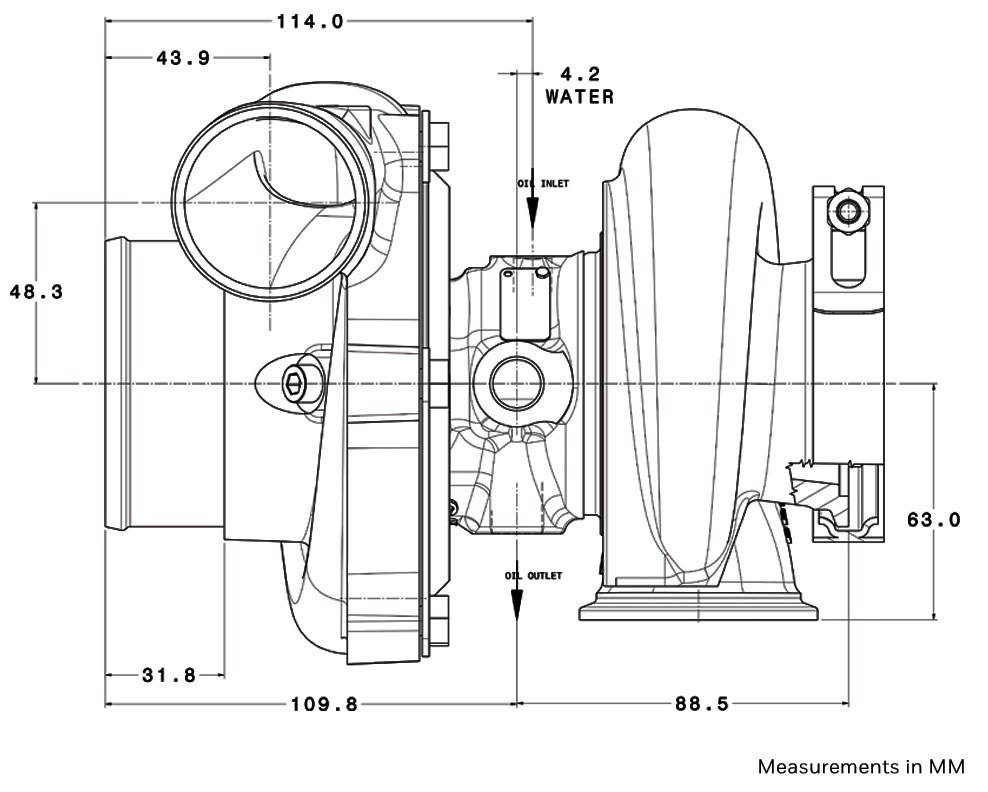

Rozměry:
Grafy:
