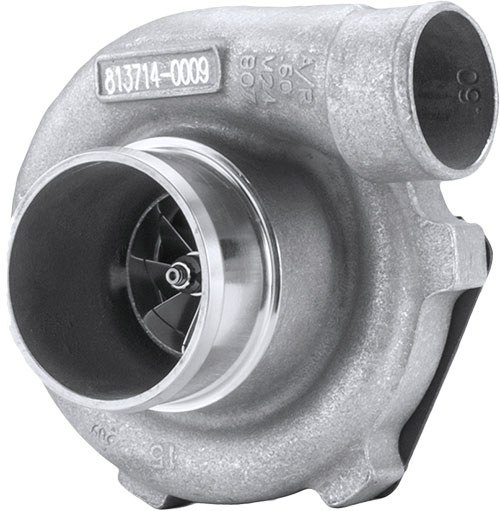

Turbo firmy Garrett, GTX2967R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 836041-5001S | 836013-0001 | 50mm | 67mm | 55 | 0.60 | 57mm | 52mm | 84 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 827690-0006 | 0.64 | T25 | 5-Bolt | Wastegated | N | 84 | |
| 740902-0048 | 0.61 | V-Band | V-band | Free Float | N | 84 | ||
| 740902-0047 | 0.83 | V-Band | V-band | Free Float | N | 84 | ||
| 740902-0046 | 1.01 | V-Band | V-band | Free Float | N | 84 | ||

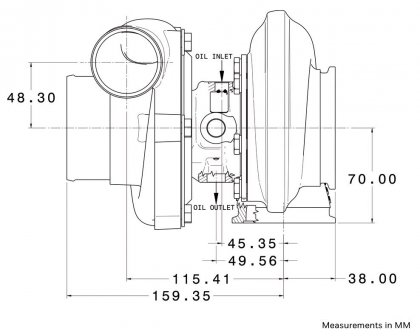

Rozměry :
Grafy :
