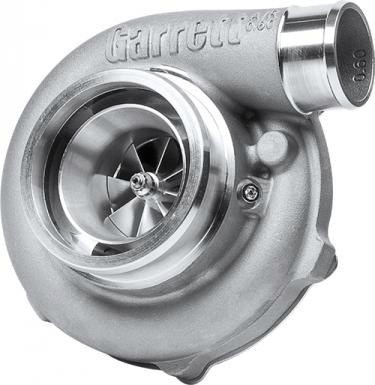

Turbo firmy Garrett GTX3071R GEN II.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3071R Standard Rotation | 54mm | 71mm | 58 | 0.60 | 60mm | 55mm | 84 | |
| GTX3071R Reverse Rotation | 54mm | 71mm | 58 | 0.60 | 60mm | 55mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | 856801-5006S | 851154-5002S | 740902-0009 | 0.63 | T3 | V-Band | Free Float | N |
| 856801-5005S | 851154-5002S | 740902-0008 | 0.82 | T3 | V-Band | Free Float | N | |
| 856801-5004S | 851154-5002S | 740902-0007 | 1.06 | T3 | V-Band | Free Float | N | |
| 856801-5018S | 851154-5002S | 740902-0036 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856801-5017S | 851154-5002S | 740902-0035 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856801-5016S | 851154-5002S | 740902-0034 | 1.01 | V-Band | V-Band | Free Float | N | |
| Wastegated Turbine Assembly PN does not include bolts, clamps, or actuator | 856801-5021S | 851154-5002S | 771300-0006 | 0.63 | T3 | 5 bolt | Wastegated | N |
| 856801-5020S | 851154-5002S | 771300-0005 | 0.82 | T3 | 5 bolt | Wastegated | N | |
| 856801-5019S | 851154-5002S | 771300-0004 | 1.06 | T3 | 5 bolt | Wastegated | N | |
| Reverse Rotation Configuration | Assembly Kit PN | Super Core PN | Turbine Asbly PN | A/R | Inlet | Outlet | Wastegate | Divided |
| 856802-5001S | 844621-5003S | 740902-0053 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856802-5002S | 844621-5003S | 740902-0054 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856802-5003S | 844621-5003S | 740902-0055 | 1.01 | V-Band | V-Band | Free Float | N | |

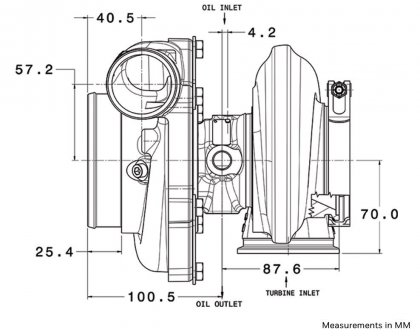

Rozměry:
Grafy :
