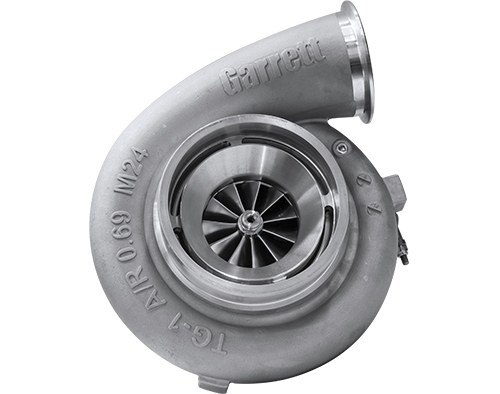

Turbo firmy Garrett, GTX4508R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
Super Core Reference Data | Compressor | Turbine | ||||||
---|---|---|---|---|---|---|---|---|
Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
800270-5001S | 451888-0045 | 80mm | 108mm | 55 | 0.69 | 87mm | 80mm | 85 |
Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
Super Core and Turbine Kit Sold Separately | 757707-0005 | 1.01 | T4 | V-Band | Free Float | Y | 85 | |
757707-0006 | 1.15 | T4 | V-Band | Free Float | Y | 85 | ||
757707-0007 | 1.28 | T4 | V-Band | Free Float | Y | 85 | ||
757707-0008 | 1.44 | T4 | V-Band | Free Float | Y | 85 |

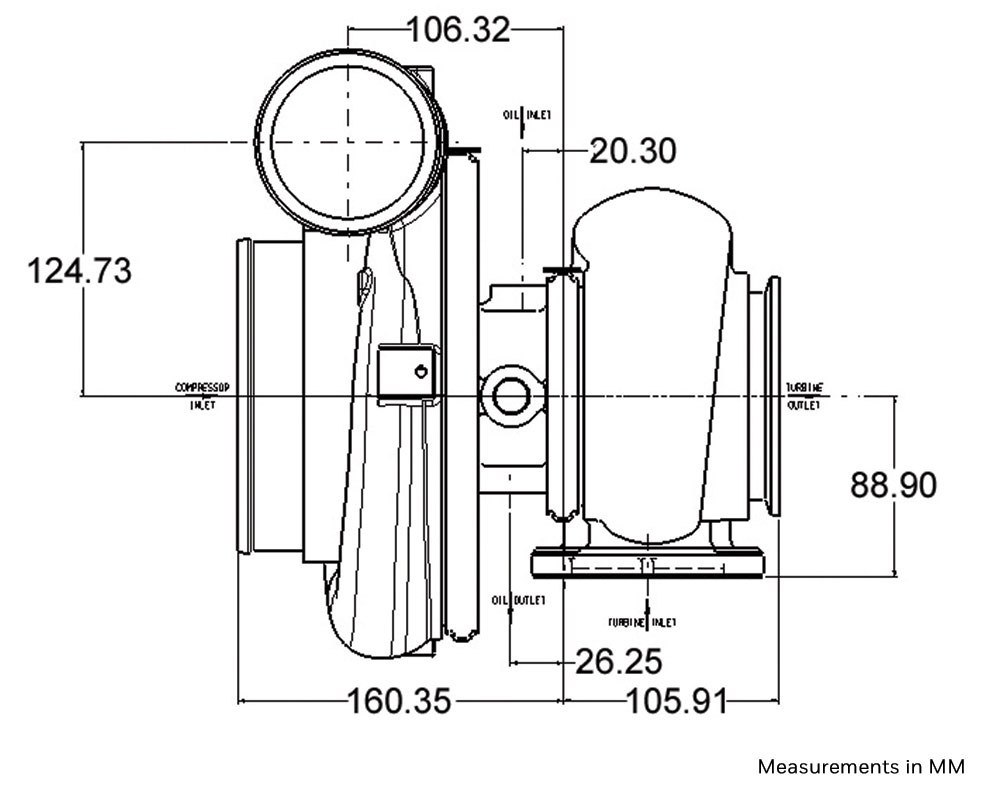

Rozměry:
Grafy:
