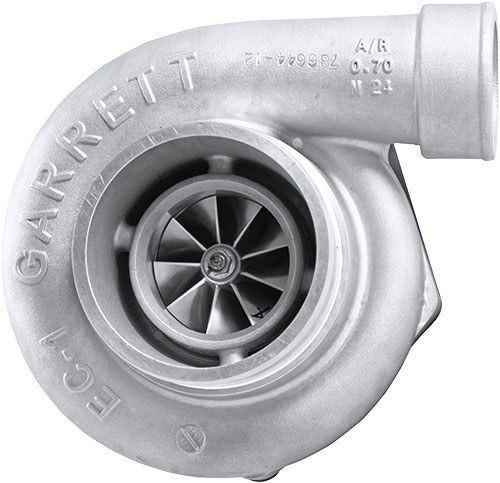

Turbo firmy Garrett GTW3476R.
Turba firmy Garrett se charakterizují nejvyšší účinnost a spolehlivost, podporované dlouholetými zkušenostmi.
Použití :
Konfigurace turba :
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 841691-5001S | 757197-0009 | 58mm | 76mm | 58 | 0.70 | 65mm | 57mm | 76 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 844669-0001 | 0.48 | T3 | 4-Bolt | Free Float | N | 76 | |
| 844669-0002 | 0.63 | T3 | 4-Bolt | Free Float | N | 76 | ||
| 844669-0003 | 0.82 | T3 | 4-Bolt | Free Float | N | 76 | ||
*841297 Journal Bearing Option
*841691 Water Cooled CHRA

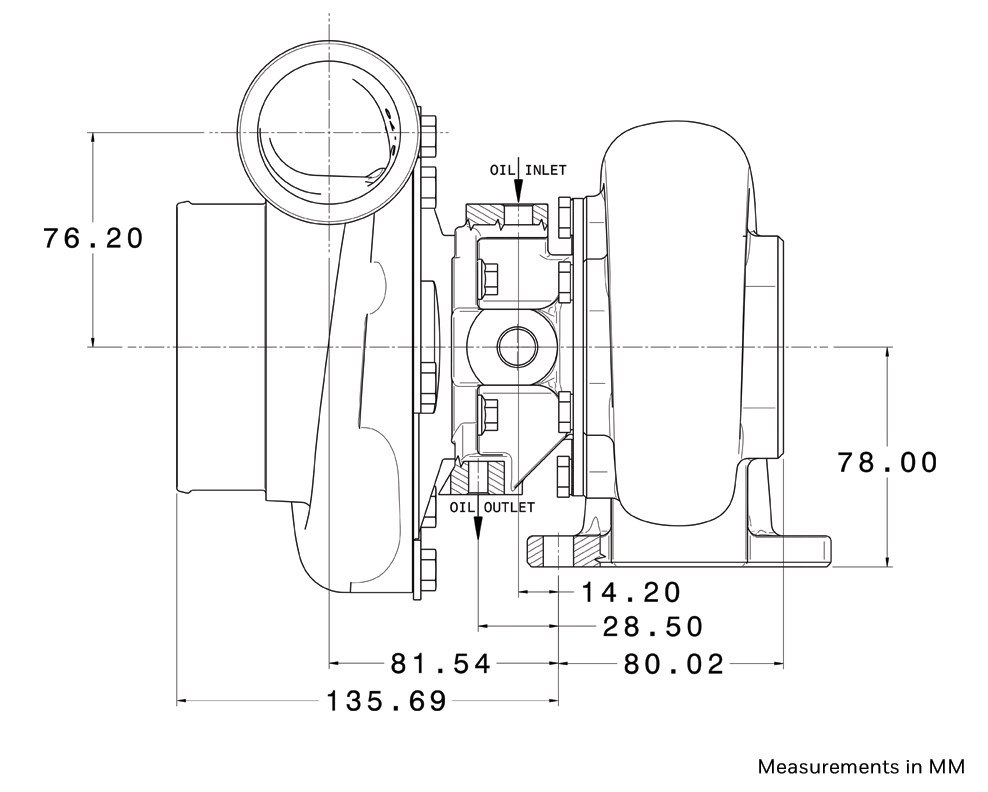

Rozměry :
Grafy:
